University of Washington wave-converter tests expose gaps between simulations and tank results

University of Washington researchers found that computer simulations matched measurements from their surge wave-energy converter in some tank tests but not others, according to a September 21 report from the National Laboratory of the Rockies. The larger tank also exposed friction and buoyancy problems in the test device. Those findings matter because the team is investigating whether a converter usually suited to near-shore waves could work in the open ocean, where it has not yet been tested.

The device has a flap that swings as waves push against it. Researcher Brittany Lydon told the laboratory that the design relies on waves approaching perpendicular to the flap, a direction more consistently found near shore. Testing its behavior farther from shore was the question behind the project; the work reported so far took place in a wave tank, not at sea.

A wider tank, with limits of its own

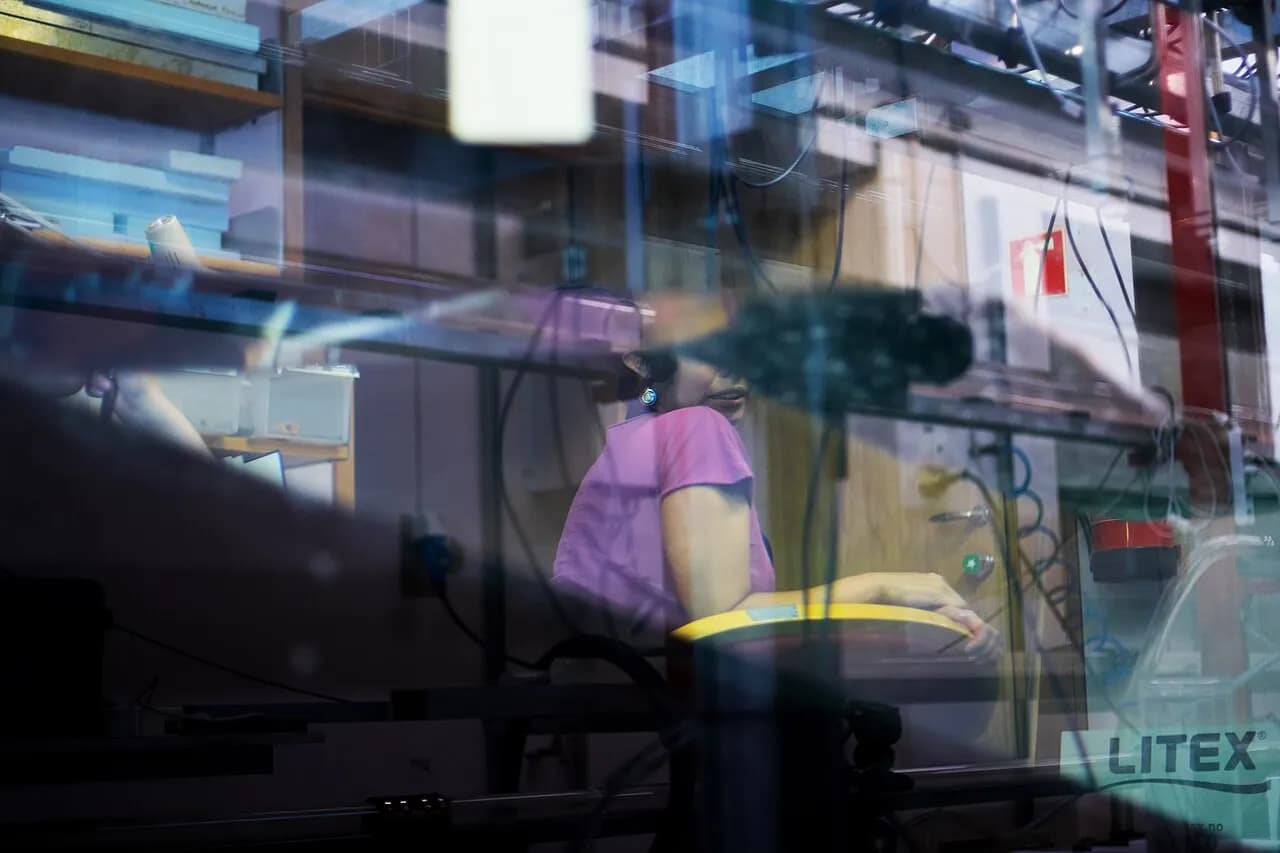

A Department of Energy Testing Expertise and Access for Marine Energy Research award gave the team access to the laboratory’s Sea Wave Environmental Lab and technical support. Lydon said its tank was about three times as wide as the University of Washington tank, where the narrow space had made it difficult to obtain clean data. The extra width let the researchers test more wave frequencies and amplitudes with less interference from the tank’s boundaries.

The laboratory describes the tank as 14 metres long and 2.5 metres wide, with a constant water depth of 1.3 metres. It still constrained the experiment: Lydon said some confinement remained even in the wider facility. That distinction matters when interpreting a model comparison, because a tank measurement reflects the test setup as well as the converter’s response to waves.

The researchers compared the tank results with boundary-element-method simulations. Lydon said the simulations agreed with measurements in some cases and disagreed in others. The laboratory account does not give a numerical error range or a full account of the wave conditions behind each result, so it does not establish how large the mismatches were or when a model would be reliable.

Hardware changed the course of testing

The team had planned to test data-driven model-predictive control schemes for the converter. Early experiments instead revealed substantial friction in its driveline and too little buoyancy in the flap, which drifted. The researchers shifted their attention to those effects. According to the laboratory, they examined how tank confinement worsened some device quirks and used control strategies to address experimental artifacts without changing the hardware.

That shift is consequential for interpreting the campaign. A flap that drifts or resists motion through friction may behave differently from an idealized model even when the model’s treatment of waves is sound. The laboratory reports observations and a change in experimental approach, but its account does not provide enough measurements to separate the contribution of each effect across all tested conditions.

What earlier work can—and cannot—show

The modeling challenge is not unique to this project. In a separate 2016 study of another oscillating surge converter, researchers compared forced-oscillation measurements with two boundary-element models. Their published abstract reports good agreement for small angular motions up to 0.3 radians, alongside torque the models did not predict. Those results provide context for why physical testing matters; they do not verify the University of Washington team’s measurements.

The Department of Energy says marine-energy devices need testing in laboratories and open water. It also identifies high facility costs, complex permitting and environmental-monitoring expenses as barriers to open-water work. Tank access therefore helps researchers investigate a design before a sea trial, while leaving questions about performance and survivability in ocean conditions for later testing.

Lydon said the team hopes to repeat or extend its comparison of measured coefficients and simulations in a less confined space. As of the laboratory’s September 21 report, journal articles describing the campaign were still being developed or prepared for submission. The report offers no open-ocean validation, electrical-output figure or durability result for this device. For now, the finding is a more detailed picture of what the tank setup revealed—and what its measurements cannot yet establish about use at sea.
